Consumables- Microfluidic chips
The below are disposable microfluidic chips for each of our products.
For On-chip Droplet Selector

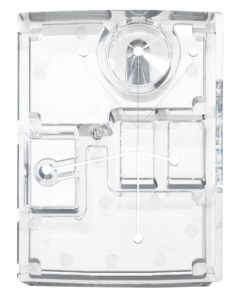

Droplet dispensing chip (80 μm)
| Catalog number | 1004001 |
| Product name | 2D Chip-SD1000 |
| Specifications | Material：COP Sample volume：20μL-200μL Oil volume：9mL Channel dimensions (W x H)：80μm × 80μm Quantity：10 chips/box |
| Purpose of use | Used for W/O emulsion droplet detection, separation and dispensing |
| Price（incl. tax） | Please contact us |

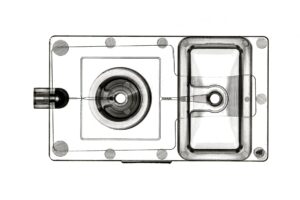

Droplet dispensing chip (150μm)
| Catalog number | 1004002 |
| Product name | 2D Chip-SD1000w150 |
| Specifications | Material：COP Sample volume：20μL-200μL Oil volume：9mL Channel dimensions (W x H)：150μm × 150μm Quantity：10 chips/box |
| Purpose of use | Used for W/O emulsion droplet detection, separation and dispensing of 100 μm or larger |
| Price (incl. tax） | Please contact us |
For On-chip Sort

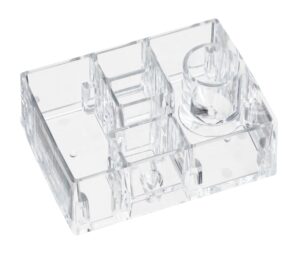

80μm size channel microfluidic chip (10 chips/box)
| Catalog number | Unsterilized：1002004 Sterilized：1002004S |
| Product name | Unsterilized：Chip-Z1001 Sterilized：Chip-Z1001S |
| Specifications | Size（HｘW）：40mm X 60mm Material：COP Sample volume：20μL-300μL Sheath liquid volume：1-9mL Channel dimensions（W x H）：80μm X 80μm With internal reflective surface for side scattering and fluorescence detection Low-temperature plasma sterilization（Chip-Z1001S only） |
| Purpose of use | For cell separation and analysis |
| Price（incl. tax） | Please contact us |

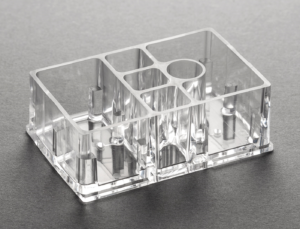

150μm size channel microfluidic chip (10 chips/box)
| Catalog number | Unsterilized：1002005 Sterilized：1002005S |
| Product name | Unsterilized：Chip-Z1000-w150 Sterilized：Chip-Z1000-w150S |
| Specifications | Size（HｘW）：40mm X 60mm Material：COP Sample volume：20μL-300μL Sheath liquid volume：1-9mL Channel dimensions（W x H）：150μm X 150μm With internal reflective surface for side scattering and fluorescence detection Low-temperature plasma sterilization（Chip-Z1000-w150S only） |
| Purpose of use | Used for sorting large cells or cell clusters |
| Price（incl. tax） | Please contact us |
For On-chip Droplet Generator

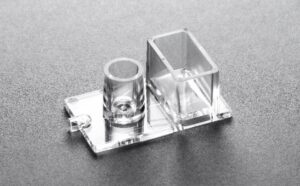

Emulsion droplet making microfluidic chip (60 μm)
| Catalog number | 1003003 |
| Product name | 2D chip-1060DG |
| Specifications | Material：COP Sample volume：20-640μL Oil volume：100-2300μL Channel dimensions (W x H)：60μm × 60μm Quantity：10 chips/box |
| Purpose of use | Used for making W/O emulsion droplets of about 60-120μm |
| Price（incl. tax） | Please contact us |
Emulsion droplet making microfluidic chip (100 μm)
| Catalog number | 1003004 |
| Product name | 2D chip-1100DG |
| Specifications | Material：COP Sample volume：20-640μL Oil volume：100-2300μL Channel dimensions (W x H)：100μm × 100μm Quantity：10 chips/box |
| Purpose of use | Used for making W/O emulsion droplets of about 90-220μm |
| Price（incl. tax） | Please contact us |

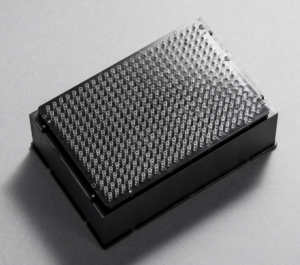

For On-chip SPiS
| Catalog number | 1007001 |
| Product name | Chip-384S |
| Specifications | 384 tips/box |
| Purpose of use | Used for cell detection and dispensing |
| Price（incl. tax） | Please contact us |
