Single cell/particle dispenser: On-chip SPiS

In recent years, single-cell analysis technology has been attracting attention. Single cell analysis requires accurate cell dispensing technology, but the lack of such technologies had been the bottleneck of research. Especially, cancer research involves vast stains of clones and the demand for analysis of each individual cancer cells as well as the determination of subtypes and genetic mutations are escalating rapidly.

Limiting dilution widely used for cell cloning is a simple and low-cost method, but the single cell dispensing accuracy is low and repeated re-cloning operation is required. In contrast, dedicated single cell analysis instruments are expensive and inconvenient for general purposes, while the accuracy is not at a satisfactory level.

Therefore, On-chip Biotechnologies has developed On-chip SPiS in order to solve this problem. It is an easy-to-use instrument that allows dispensing of cells and large particles with single-cell/particle dispensing accuracy of over 90%.



  • Easy and automatic operation
  • Disposable pipette tip-based dispensing system
  • Automatic dilution function + CCD camera image recognition
  • Dispensing of sample sized up to 200 µm
  • Ability to fit inside a standard biosafety cabinet
  • Reasonable price

 Workflow of On-chip SPiS

On-chip SPiS draws up 0.2 µL of sample and accurately determines the number of cells within the disposable pipette tip by image recognition. The instrument automatically adjusts the sample to its optimal cell concentration and then the sample is dispensed out on to a well plate only when the specified number of cell in the 0.2 µL buffer is detected. Otherwise, the sample is dispensed back to the sample tube and the instrument repeats this process until the number of cell matches the specified value. On-chip SPiS can be used for single and multiple cell plate (e.g., 5 cells per well).

 Accuracy and analysis speed of single-cell dispensing

A549 cells were dispensed into 96 wells at 1 cell/well in 54 minutes. The number of wells with a single cell dispensed was 90, and cell proliferation was confirmed in 83 of them.

Confirmation of quantity-specified dispensing (ATP assay)

Quantity-specified dispensing

PC9 cells were dispensed into each well at 1, 2, 3 and 5 cells/well and the amount of ATP was measured, resulting in a good calibration curve in correlation with the number of cells.


Verification of dispensing accuracy based on the ATP amount

PC9 cells were dispensed into 96-well plates at 1 cell/well. Single cell dispensing accuracy of about 90% was determined by measuring the amount of ATP in each well.


Single cell dispensing of knockout strains

On-chip SPiS is useful for post-genome editing screening. A poliovirus (PV) receptor knockout cell line was generated using CRISPR-Cas9. A single cell was dispensed into each well of a well plate and cultured, followed by viral infection. As a result, 49 clones that acquired PV resistance were successfully established.


HDR mutant clone selection

Transfected HEK293T cells were sorted by our microfluidic chip cell sorter (On-chip Sort) to obtain positive strains, and single cells were dispensed by On-chip SPiS. As a result, genome-edited clones were efficiently obtained one by one. In addition, clones with homozygous mutations were efficiently obtained.


Dispensing of spheroids of different sizes for drug evaluation

The use of spheroids (cell masses) which can reproduce the biological environment has attracted attention in the evaluation of drugs such as anti-cancer agents. Uniform sized spheroids are necessary for highly accurate evaluation. Therefore, On-chip® Sort was used to select spheroids of a specific size and On-chip SPiS was used to dispense the collected spheroids on to a well plate for fast and accurate drug efficacy evaluation.


Dispensing of gel microdrops (GMDs) containing bacteria

On-chip SPiS can dispense not only cells and large particles, but also GMDs (microdroplets solidified as gels). Bacteria grown from a single cell can form microcolonies inside the GMDs, which can be recognized by the CCD camera in On-chip SPiS. The use of GMDs is useful in screening and isolating environmental microbes and generation of mutant libraries.


Dispensing and culture of swimming tetrahymena

Protozoan Tetrahymena were dispensed at 1 cell/well into a total of 180 wells and cultured for three days. Single cell dispensing was confirmed in 159 wells, 137 of which had cell proliferation. This result indicates that the system can dispense migrating cells with high accuracy.

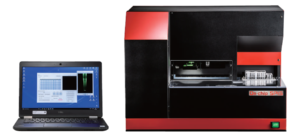

Product name On-chip SPiS
Product number 70001
Configuration Main unit and control PC (Windows)
Main unit size 610 x 365 x 450 / W x D x H (mm)
Dispensing method Disposable pipette tips
Recognition method Image recognition by a camera with built-in 5-megapixel resolution CMO sensor
Tip volume 0.2μL
Sample Cells, pollen, protists, cell aggregates, beads, gel micro drops, etc.
Recognition size 10–200 μm (cultured cells are recognized)
Dispensing accuracy ≥ 90% (depending on sample conditions)
Biosafety Installable in a biosafety cabinet
Damage to samples Low damage to samples such as cells
Stirring method Automatic stirring with the disposable pipette tip
Solution Water, culture media, seawater, etc.
Processing speed 60 min/96 wells (changeable with setting conditions and sample conditions)
Supported plate 96-well plates, 384-well plates
Power input AC 100-120V, 50/60Hz
Power consumption 1.0A typ (ACIN 100V)



Dispensing pipette tips for On-chip SPiS (sterile)

Sterile pipette tips that enable aseptic dispensing operations.
・Product Number: 1007001
・Product name: Chip-384S
